| ¡¡¡¡Products
>> Anti-static Steel Cement Panel |
Surface of panel |
Bottom of panel |
It is made up by drawing the
high quality steel plate with spot welding,
spraying plastic and the lumen is filled
with froth cement; its surface affixes the
decorating plate of high temperature resistant
and non-flaming; it around is setting the
electric filler rod, bracket, handle girder
with whole galvanization; the height of
bracket can be adjustable with auto-locking
function. |

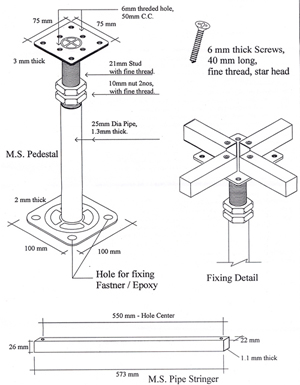

Support earth system |
Crossbeam |
|

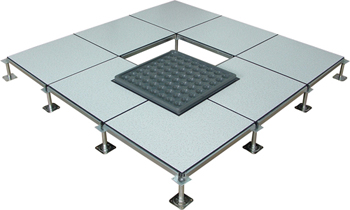

Standard type support |
|
¡ñWhole steel combination framework
with strong intension and shockproof ability
¡ñHigh size precision and good interchangeability
¡ñ Arbitrary incise the floor and convenient
install fittings
¡ñDisposal of anti-electrostatic spraying
plastic on the surface and good corrosion
resistance
¡ñ Fireproofing, anti-electrostatic and dustproof
¡ñFixed around and convenient installation
¡ñ The nether part can be used as airiness
for air-conditioning.
¡ñ For the overweight equipment, it can solve
the overload problem only with adding bracket
under the floor.
¡ñConvenient dismounting with only replacing
decorating wainscot and it can be repeated
used.
¡ñ It can affix different wainscot according
to different occasions and different request
from clients. |
 |
¡ñ Inflaming retarding,
corrosion proof, abrasion proof and
easy cleanout
¡ñ Sobriety, decent and good decorating
effect
¡ñ It is applicable to the occasion
without needing of anti-electrostatic
but with the needing of overhead wiring,
airiness, and moisture proof such
as collectivity office, monitoring
room of hotel security, large exhibition
hall, and electric product showroom
etc. |
|

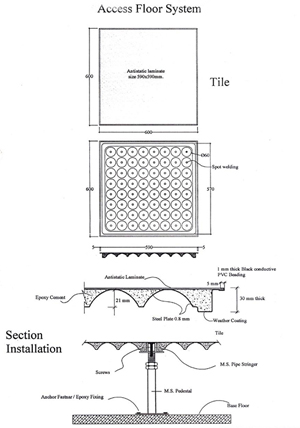

Engineering
Effect Diagram |

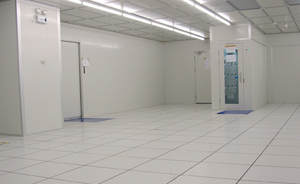

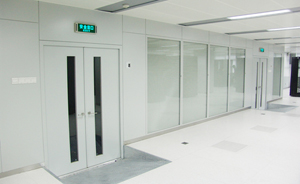

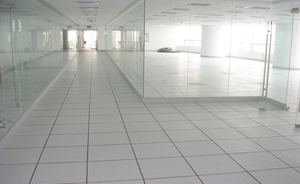

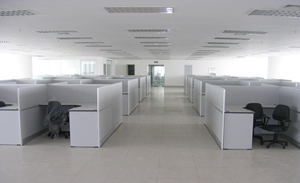

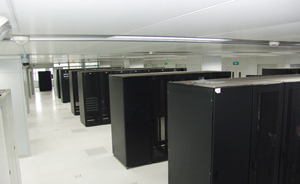

Engineering Example |
Engineering Example |
Engineering Example |
Engineering Example |
| Type |
£¨mm£©
Size |
Concentrated
Load
(deflection=2mm) |
(N/M2)
Uniform Load
|
(N)
Ultimate limit Load |
(¦¸)
System Resistor |
| International |
National
Standard
SJ/T10796 |
lb |
N |
kg |
| AS450 |
HDG600 30CQG |
600¡Á600¡Á30 |
¡Ý450 |
¡Ý1960 |
¡Ý200 |
¡Ý10000 |
¡Ý5900 |
1¡Á105-
1¡Á1010 |
| AS680 |
HDG600 30QG |
600¡Á600¡Á30 |
¡Ý680 |
¡Ý2950 |
¡Ý300 |
¡Ý12500 |
¡Ý8850 |
| HDG600
35QG |
600¡Á600¡Á35 |
|
HDG610
35QG |
610¡Á610¡Á35 |
| AS800 |
HDG600
35QG |
600¡Á600¡Á35 |
¡Ý800 |
¡Ý3550 |
¡Ý360 |
¡Ý15000 |
¡Ý10650 |
| HDG610
35QG |
610¡Á610¡Á35 |
| AS1000 |
HDG600
35BG |
600¡Á600¡Á35 |
¡Ý1000 |
¡Ý4450 |
¡Ý450 |
¡Ý23000 |
¡Ý13350 |
| HDG610
35BG |
610¡Á610¡Á35 |
| AS1250 |
HDG600
35ZG |
600¡Á600¡Á35 |
¡Ý1250 |
¡Ý5560 |
¡Ý568 |
¡Ý33000 |
¡Ý16680 |
| HDG610
35ZG |
610¡Á610¡Á35 |
Notice:
1. It could select the height of floor.
2. The carrying capacity of pedestal is not low
20KN and can match with every type of raised floor.
|
|
