| ¡¡¡¡Products
>> OA panel
500series |
OA Intelligent Raised Floor
(OA500 Series) is made up by drawing the
high quality steel plate with spot welding,
spraying plastic and the lumen is filled
with froth cement; the bracket is galvanization
and casting aluminum alloy framework; the
height can be adjustable with auto-locking
function; the floor around has two kinds
type such as trimming and riveting. Because
the wiring of intelligentized building is
very complex and the function is complete,
there are many outlet interfaces. This floor
has double-side outlet interface, which
avoids the inconvenience of alloy steel
floor. It needs angle-lock with no-girder
to install, which has the character of fixed,
stable and convenient to adjust etc.
|
Location of Application
¡¡¡¡ It is applicable to the location such
as office building, intelligentized office
environment, OA class room and the location
needing waterproof, dustproof and overhead.
It can be used with anti-electrostatic square
carpet |
 |
Character
¡¡¡¡¡ñ Whole steel combination framework with
strong intension and shockproof ability
¡¡¡¡¡ñ High size precision and good interchangeability
¡¡¡¡¡ñ Disposal of anti-electrostatic spraying
plastic on the surface and good corrosion
resistance with long useful life
¡¡¡¡¡ñ Fireproofing, waterproof and dustproof
¡¡¡¡¡ñ The four sides are fixed very well to
avoid moving of floor with good walking
feel.
¡¡¡¡¡ñ The mould of outlet interface is molding;
it is easy to wiring and the installation
of earth socket is more convenient.
¡¡¡¡¡ñ The nether part can be used as airiness
for air-conditioning.
¡¡¡¡¡ñ For the overweight equipment, it can
solve the overload problem only with adding
bracket under the floor.
¡¡¡¡¡ñ Convenient dismounting and it can be
repeated used. |
 |
 |

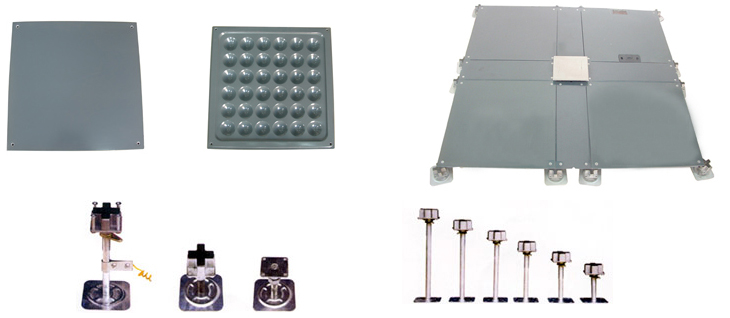

| Pedestal earthing system |
Standard pedestal |
Draw-edge pedestal |
|
Every type of pedestal
|
| Technical
parameter of OA Intelligent Raised Floor¡¡(OA500
Series) |
| Type |
Concentrated
Load
(deflection=2mm) |
(N/M2)
Uniform Load
|
(N)
Ultimate limit Load |
Remark |
| International |
Size£¨mm£© |
lb |
N |
kg |
| OA501A |
500¡Á500¡Á28 |
¡Ý680 |
¡Ý2950 |
¡Ý300 |
¡Ý12500 |
¡Ý8850 |
Many kinds of
Anti-static
carpet tile
made both in
China and
abroad can be
selected for
use.
|
| OA501B |
500¡Á500¡Á28 |
¡Ý800 |
¡Ý3550 |
¡Ý360 |
¡Ý15000 |
¡Ý10650 |
| OA501C |
500¡Á500¡Á28 |
¡Ý1000 |
¡Ý4450 |
¡Ý450 |
¡Ý23000 |
¡Ý13350 |
| OA501D |
500¡Á500¡Á28 |
¡Ý1250 |
¡Ý5560 |
¡Ý568 |
¡Ý33000 |
¡Ý16680 |
| OA502A |
500¡Á500¡Á28 |
¡Ý680 |
¡Ý2950 |
¡Ý300 |
¡Ý12500 |
¡Ý8850 |
| OA502B |
500¡Á500¡Á28 |
¡Ý800 |
¡Ý3550 |
¡Ý360 |
¡Ý15000 |
¡Ý10650 |
| OA502C |
500¡Á500¡Á28 |
¡Ý1000 |
¡Ý4450 |
¡Ý450 |
¡Ý23000 |
¡Ý13350 |
| Cable
channel |
500¡Á150 |
|
|
|
|
|
Notice: 1. It can arbitrary select
the laying height of elevated floor
among 50 -1000mm .
2. The carrying capacity of bracket
is not low 20KN and can match with
every type of elevated floor.
|
|
|
