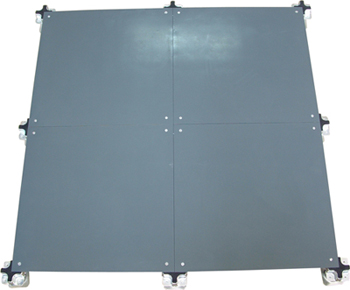

| Face
side of OA600 floor |
Back
side of OA600 floor |
| |
| |
OA
Intelligent Raised Floor (OA600 Series)
intelligentized network whole overhead
elevated floor is similar with OA500
series, but the area of single floor
is bigger; it is convenient to pave
and the distance among the nether
bracket is larger than OA500 floor,
which can contain more pipeline. It
is applicable to the location such
as office building, computer machine
room, and the places needing waterproof,
dustproof and overhead; it always
paves the anti-electrostatic square
carpet over its surface.
|
| OA600OA600
floor supporting framework |
|
 |
After
paved, the OA600 intelligentized
network whole overhead elevated
floor can be wiring at any time
and can be arbitrary disassembly
without professional work to
help.Compared with the common
floor, OA600 floor can solve
the general wiring problem of
you facing at any time, which
is also high intension and long
useful life. |
|
| Assembly
Drawing |
| |
|
OA600 intelligentized
network whole overhead elevated floor
adopts the same supporting framework
as OA500 series; the bracket, bracket
earthing system and draw-edge bracket
can be current used. |
| |
 |
OA600 intelligentized
network whole overhead elevated
floor adopts the same supporting
framework as OA500 series; the
bracket, bracket earthing system
and draw-edge bracket can be current
used.
|
| |
|
| |
 |
 |
| |
| Bracket
earthing system |
Standard
bracket |
Draw-edge
bracket |
|
Every type of bracket |
|
Technical parameter of OA Intelligent
Raised Floor (OA600 Series) |
|
Type |
Concentrated
LodaDeflection=2mm |
（N/M2)
Ultiform limit Load |
（N)
Ultiform limit Load |
remark |
| Intrenational |
Size（mm) |
lb |
N |
kg |
| OA601A |
600×600×35 |
≥680 |
≥2950 |
≥300 |
≥12500 |
≥8850 |
Many kinds of Anti-static carpet
tile madebothin China and abroad
can beselectedforuse
|
| OA601B |
600×600×35 |
≥800 |
≥3550 |
≥360 |
≥15000 |
≥10650 |
| OA601C |
600×600×35 |
≥1000 |
≥4450 |
≥450 |
≥23000 |
≥13350 |
| OA601D |
600×600×35 |
≥1250 |
≥5560 |
≥568 |
≥33000 |
≥16680 |
| |
|
Notice: 1. It can arbitrary
select the laying height of elevated
floor among 50 -1000mm .
2. The carrying capacity
of bracket is not low 20KN and can
match with every type of elevated
floor.
|
| |
